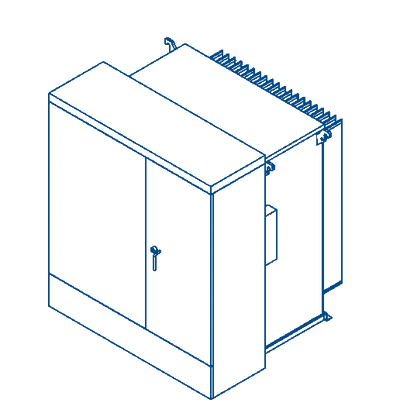

3-PH Padmount Transformer
Standard Specifications
- Type II non-PCB mineral oil (ONAN)
- High-grade silicon-steel core
- Aluminum windings
- Pad-lockable door handle
- No-load tap changer
- Impedance 5.75 % (±7.5%)
- Reinforced carbon steel tank
- Lifting lugs
- Externally clamped high- and low-voltage bushings
- Pressure relief valve
- Pressure vacuum gauge
- Liquid temp gauge
- Liquid level gauge
- Drain and sample valve
- Schrader valve
- Ground pads/lugs
- Nitrogen blanket
- 65 degree C rise
Optional Features
- Environmentally friendly, high fire-point FR3 oil (KNAN)
- Copper windings
- Key interlock provisions
- Stainless steel tank
- Gauges with contacts
- Externally accessible drain and sample valve
- External gauge package
- Lid-mounted pressure relief device
- Sudden pressure relay
- Lightning arresters
- Viewing windows in cabinet
- 55/65 degree C rise
- Step-up solar and wind duty design
- Electrostatic shielding
- K-rated design
